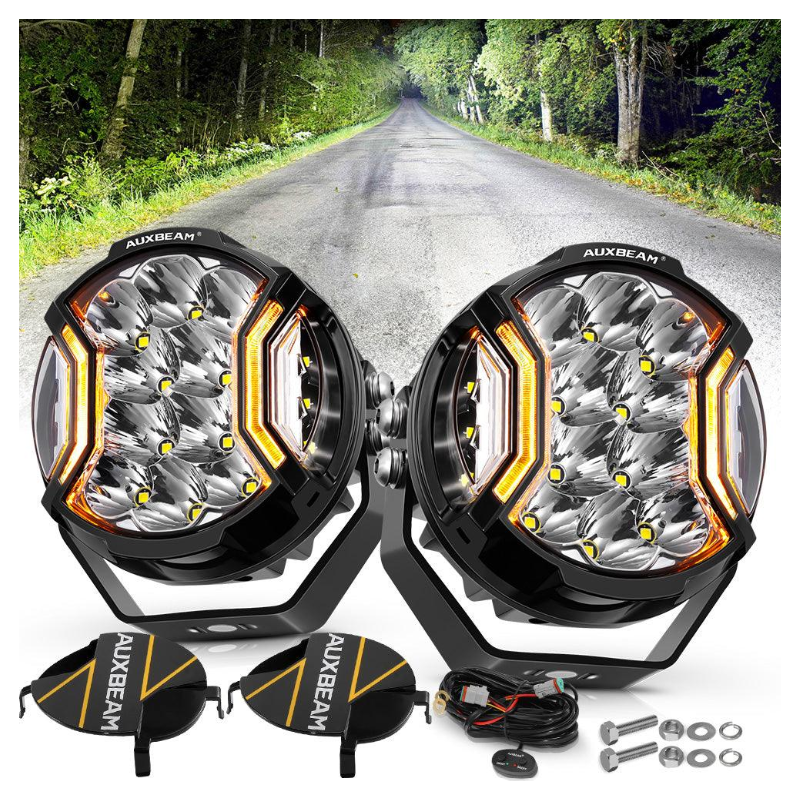

V-ULTRA Series | 5 Inch 172W LED Side Shooter White Pod Lights with Amber DRL

Specification:

Size: 5 Inch
Quantity: 2Pcs
Power/Set: 86W*2(Spotlights 80W+Amber DRL 6W)=172W
Total Lumens: 20400LM(19200LM+Amber DRL 1200LM)
Housing Material: Aluminum Alloy
Lens Material: PC
Lamp Beads Model(Each): P8 5W/PCS*16+2835 SMD 6W
Lighting Distance: 1 LUX@617M
Beam Pattern: (Spot+Flood)Combo Light+Double-Side Shooter Light
Light Color: White+Amber DRL
Color Temperature: 6500K White+3000K Amber DRL
Light Cover: Black
With EMC/EMI: Yes
Fit Model: Universal
Life Time: 50000+ hours
Housing Color: Black
Waterproof Rate: IP68
Working Voltage: 12V-24V(Wiring harness Relay is 12V Only，can be replaced with 24V)

Packing Included:

2 X LED Driving Light（With DT Plug）
2 X Light Cover（Black）
1 X Wiring Harness（With DT Plug）
1 X Srew Accessories

▶6-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

6-Pod Lights (A maximum of six pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

4-Pod Lights (A maximum of four pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

▶8-LED Pod Light Power Wiring Harness Kit

Recommend Fit for Our Pod Light SKU:

8-Pod Lights (A maximum of eight pod lights can be installed):
XP-ULTRA Series: ZD000753
V-MAX Series: ZD000851/ZD000852/ZD000849/ZD000850
V-ULTRA Series: ZD000820/ZD000821
Other Product: ZD000752

6-Pod Lights (A maximum of six pod lights can be installed):
V-MAX Series: ZD000869/ZD000870
Other Product: ZD000617/ZD000484/ZD000696/ZD000697

Features:

Compatible: The wiring harness of the LED Pod Light is suitable for three-wire Main Light+DRL mode, and also includes the 6 in 1 3PIN DT Plug 40A fuse and relay. Built-in blade fuses to prevent overcurrent and short circuit to ensure the safety of the vehicle electrical system.
Load Power: The wiring harness is included in a 3-meter 10AWG (5mm²) main wire&18AWG (0.75 mm²) DRL wire and a 3 PIN DT-adapter plug with a total length of 1.5 meters, it can effectively overload the MAX 40A current, that is, the load power is 480W, DRL power Max 6A (2W)in the 12V.
Plug and Play: The ultra-high quality features of the LED wiring harness kit make it a must-have tool for connecting any lights to your vehicle. The 6-Pod LED harness is easy to install, comes with 3 wires DT Plug and can be used for roof or bumper in your vehicle.

Specification:

Switch Wire Length: 3M
Install Pod Distance: 15cm
DT-plug Adapter Length: 10cm
DT-plug Connector: 3 PIN
Wire Size: 10AWG National Standard（DRL 18AWG）
Wire Material: 5 mm² Copper Wire（DRL 0.75mm²）
Working Voltage: 12V（Replaceable 24V relay）
Delay: Double 12V delay
